Blade cutting machine Mec 3000V1
for stainless steeltubehigh-performance

blade cutting machine
blade cutting machine
blade cutting machine
blade cutting machine
blade cutting machine
Add to favorites
Compare this product


Characteristics

Technology
blade
Material
for stainless steel
Product handled
tube
Other characteristics
high-performance, for gears
Tube diameter

Min.: 12 mm
(0 in)

Max.: 100 mm
(4 in)

Description

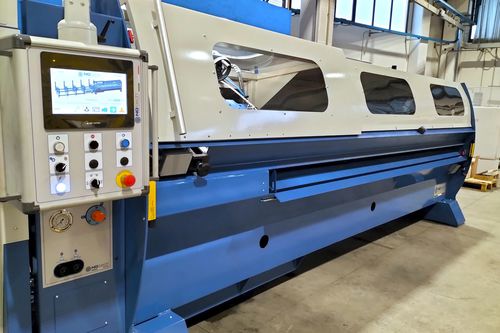

The cutting machine Mec 3000V1 has been developed by NG-Tech starting from Simec Srl technology as per cooperation in course. The cutting machine Mec 3000V1 is suitable for cutting up to 3-metre long tubes. The machine offers excellent performances even with stainless steel tubes; the blade diameter from min. Ø250 mm to max. ø315 mm makes it possible to straight cut workpieces having a diameter between 12 mm and 100 mm. Blades: HSS and TCT. Cutting head: consisting of pairs of helical hardened and ground gears, the head is driven by a brushless motor and travels along linear rails with a 30° angle thanks to recirculating ball screws. Bar stop: moves on a rack and is driven by a servo motor. Inovance PLC and electronic material: featuring a touch-screen interface. Electronic circular blade protection: adjustable. Lubrication: central, for cutting head and saw blade movement.
