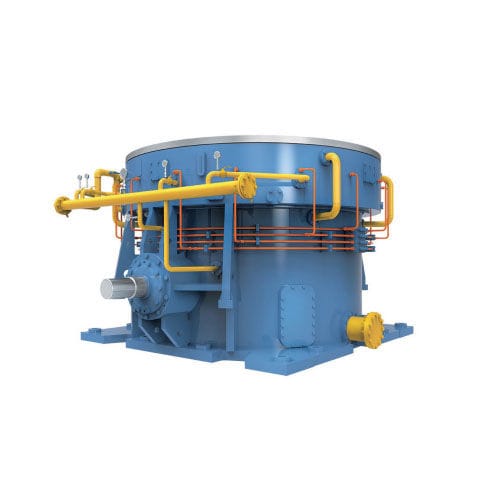

Vertical mill gearbox

planetaryspiral bevelstraight-toothed

This product series is divided into the MLX M two-stage transmission series, the MLXSD M three-stage transmission series, and the MLXSS M dual planetary transmission series. It features a modular design for its core components, characterized by small size, light weight, large transmission torque, and high reliability. It features an independent lubrication station for lubrication and cooling. It is suitable for mill applications with a rated input power of 80–9,000 (kW). Features: Advanced platform system with modular design enabling better interchangeability of parts; The structure of all key parts has been optimized by means of finite element analysis, resulting in a more compact design; Optimized tooth profile and lead modifications ensure more uniform load distribution and higher load-bearing capacity; Innovative thrust bearing, complete load-bearing structure; multiple lubrication configurations suitable for various operating condition requirements. Main Technical Parameters: Speed ratio range: 20–60 Main Fields of Application: Suitable for raw material mills, coal mills, pre-grinding mills, cement mills, slag mills, gypsum, and fly ash applications in the building materials and cement industry; coal mills and limestone mills in the power and metallurgy industries, as well as grinding systems for calcite, ceramic powder and other minerals in the mining industry.
