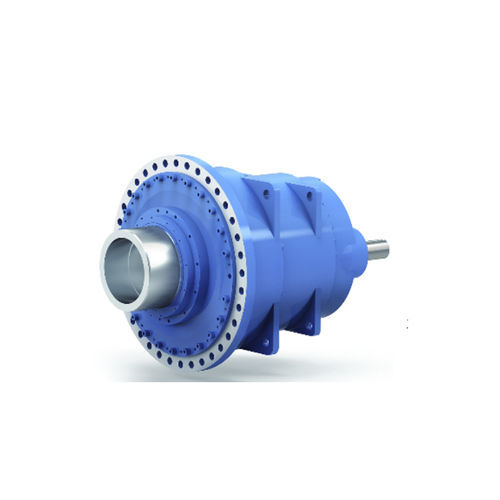

Gearbox for industrial applications MP

planetarycoaxialsolid-shaft

This product series includes MP planetary gearboxes, developed using an independent standard industrial planetary gearbox platform through advanced modular design technology. It meets ISO, AGMA, and DIN standards. Products feature longer bearing design life and higher torque density, and can reliably transmit power under extreme working conditions for extended periods. Features: Advanced, high-reliability industrial standard planetary gearbox platform; The structure of all key parts has been optimized by means of finite element analysis, resulting in a more compact design; Utilizes topology optimization technology to enhance power density ratio, making it more economical and versatile; Hard tooth surface design meets the high standards of ISO, AGMA, and DIN; Various sealing forms are available, including a special sealing structure to reduce leakage risks; Features multiple output modes to suit a variety of occasions. Main Technical Parameters: Torque range: 100–5,800 (kN.m) Speed ratio range: 45–2,300 Main Fields of Application: Suitable for roll press drives, winch lifting and mining machinery, and heavy-duty transmissions in coal, sugar milling, and other industries.
