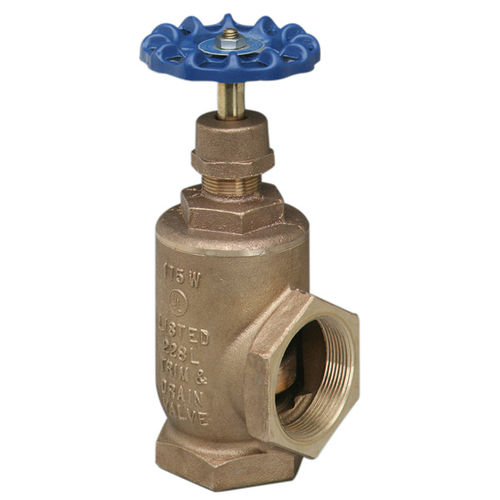

Globe valve T-301-W series

with handwheelpurgefor water

The NIBCO® bronze angle globe valve is recommended for trim valve application in an automatic fire sprinkler system. Typically it is used as the "Main Drain" in the fire protection system. The resilient seat allows positive shutoff at 175 PSI WWP. The NIBCO® bronze angle globe 175 PSI WWP valve features a screw-in bonnet with integral seat and renewable Buna-N seat disc. It is equipped with female threaded ends for ease of installation. It is usually used as the main drain in a fire protection system. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® globe valves for the most specified, versatile and economical valve option in fire protection applications. NIBCO® globe valves are backed by the NIBCO 5-year 125% limited warranty. Integral seat Screw-over bonnet Renewable seat disc Class 125 threaded end connections Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Listed by Underwriters Laboratories of U.S. and Canada for trim and drain (UL258)
