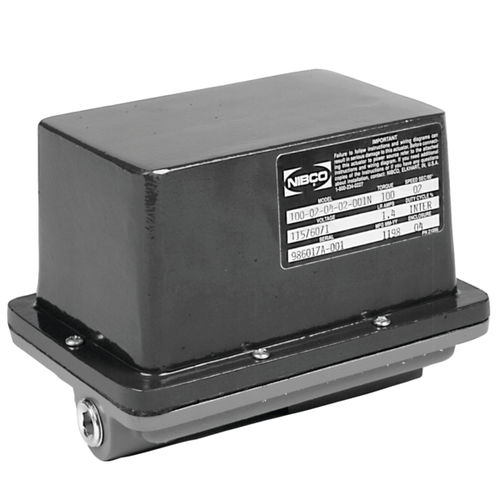

Electric valve actuator NE-100

quarter-turnNEMA 1ISO

The NIBCO® line of quality electric actuators offers a compact, rugged design. The actuators are designed for quarter-turn applications, including ball valves, butterfly valves, plug valves, dampers, and vents. NIBCO electric actuators operate on the gear reduction motor principle, which allows opening and closing speeds ranging from two seconds to one minute or longer. With reversible motors that are rated for continuous duty, NIBCO electric actuators provide maximum torque output and longer life. They also feature thermal overload protection to safeguard the motor from extreme temperatures. Permanently lubricated gear train Stainless steel output drive 2, 10, and 13 second cycle 2-second cycle models have unidirectional operation and mechanical brake 10 and 13 second cycle models have single phase capacitor run motors with internal brake Single 1/2" NPT conduit entrance Voltage 110 VAC Torque 100-350 in/lb Enclosures CSA certified to NEMA 1, 2, 3, 3R, 4, 4X and 5 Female ISO 5211, F03, F04 and F05 mounting bolt circle/drive sleeve
