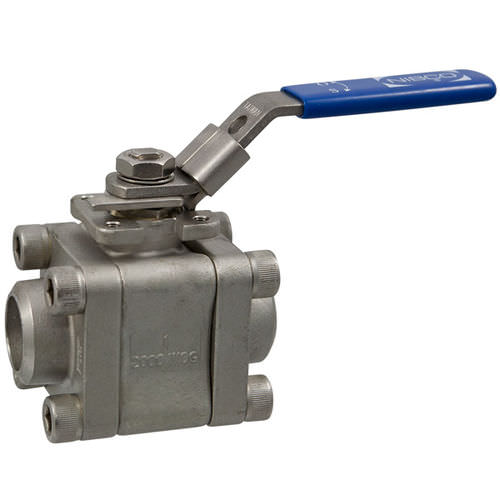

Ball valve BM-590-S6-R-66-FS-LL series
leverisolationfor chemicals

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Function
isolation
Media
for chemicals
Body
3-piece, weld, stainless steel
Applications
industrial, process
Other characteristics
ISO, standard, anti-static, locking, quarter-turn, chemical-resistant
DN

Max.: 2 in

Min.: 0.5 in

Pressure

138 bar
(2,001.5 psi)

Temperature

Max.: 400 °F
(204 °C)

Min.: 0 °F
(-18 °C)

Description

The NIBCO® stainless steel ball valve provides bubble-tight shutoff at 2000 PSI. This valve is available with butt weld pipe connections and cast ISO mounting pad for actuation purposes. The reinforced PTFE 15% glass seat ring, Graphite stem packing and stainless steel ball/stem exhibit high chemical resistance properties and are recommended for process piping. The three-piece valve is recommended for petrochemical, utility service applications. It meets Fire Safe and Anti-Static requirements. The NIBCO® ball valve provides ease of operation with quarter-turn (90 degrees) open to close. It also features enclosed bolt design. This valve features a standard locking lever handle for security purposes. It may be used for isolation and throttling (half open to full open only). Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty

Catalogs

No catalogs are available for this product.

See all of NIBCO‘s catalogs
