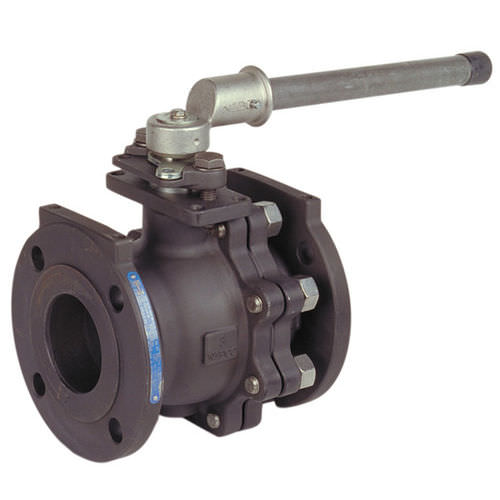

Ball valve F-515-CS-F-66-FS series

leverisolationfor chemicals

The NIBCO® carbon steel, flanged end ball valve provides bubble-tight shutoff at 285 PSI. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to Fire Safe and Anti-Static requirements and is tested to API-598 criteria. This valve features a locking handle or manual gear operator. It may be used for isolation and throttling (half open to full open only). The NIBCO® carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve is equipped with mounting pad for actuation purposes. The carbon filled PTFE seat ring, graphite and braided graphite stem packing and stainless steel ball and stem exhibit high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty. Valve pressure rating 285 psi 19.7 bar non-shock cold working pressure Split body, full port design Blowout-proof stem Stainless steel ball and stem Multiple V-ring packing Mounting pad Vented ball Locking handle or manual gear operator Class 150 flanged end connections Conforms to MSS SP-72 API-607 Fourth Edition Fire Safe
