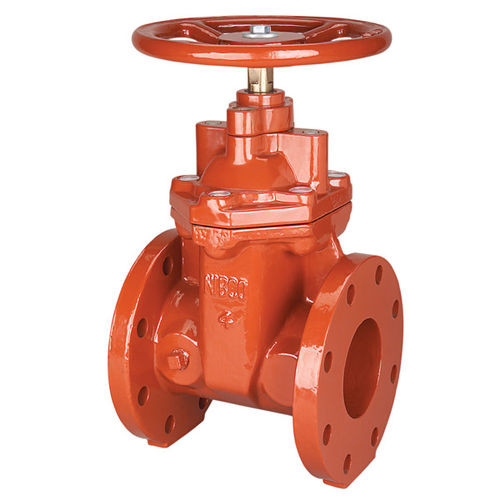

Gate valve F-619-RWS series

with handwheelshut-offfor water

The NIBCO® resilient wedge ductile iron gate valve provides full flow with minimal pressure drop and positive shutoff. The flanged, iron gate valve may be used with confidence in water works and irrigation services. The NIBCO® resilient wedge ductile iron gate valve features flanged, flat face end connections for easy installation and accessibility. Non-rising stem gate valves are recommended when positive shutoff is required and where space is a premium. The valve may be operated with a hand-wheel. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for one of the most versatile and economical valve option in irrigation, commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO 5-year 125% limited warranty. Cast iron, resilient wedge, flanged, non-rising stem Bolted bonnet Resilient wedge Fusion bonded epoxy coated body (NSF and FDA certified) Flanged end connections Meets or exceeds performance requirements of AWWA C509 and C515 for 3" and larger valves
