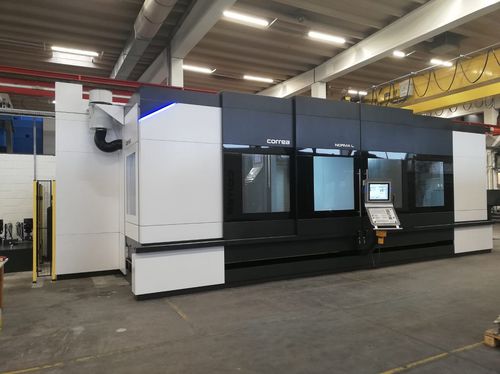

3-axis CNC milling machine NORMA Luniversalwith rotary tabletraveling-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- with rotary table, traveling-column
- Spindle mount
- ISO 50, HSK-100
- Number of tool stations
- 60 tools, 40 tools
- Associated functions
- cutting
- Other characteristics
- high-precision
- X travel
4,000 mm, 5,500 mm, 7,000 mm, 8,500 mm, 10,000 mm
(157.48 in, 216.54 in, 275.59 in, 334.65 in, 393.7 in)- Y travel
1,250 mm, 1,500 mm
(49.21 in, 59.06 in)- Z travel
1,500 mm, 2,000 mm
(59.06 in, 78.74 in)- Rotational speed
3,000 rpm, 6,000 rpm, 10,000 rpm
(18,850 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
24 kW, 30 kW, 33 kW
(32.63 hp, 40.79 hp, 44.87 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
6,000 kg
(13,228 lb)
Description
The NORMA L represents a new concept in mobile column machine with lateral ram.
Very sturdy thanks to the L-shaped ram guide and triple X-axis guide. Precision thanks to the mechanical ram droop correction system. A flexible machine suitable for machining and finishing operations
STANDARD EQUIPMENT
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y and Z axes
Lamp in the working area
Gearbox
Hydraulic group
Linear scales in all axes
External Coolant with adjustable nozzles in the head
Perimeter fence
Direct Tele-service
VIXION 4.0
OPTIONAL EQUIPMENT
Other heads
Probes of measurement, tools and parts
Air or oil cleaning gun with motor pump
Centrifugal filter in cutting fluid tank
Chip conveyors
Full guarding
Coolant through spindle to high and medium pressure
Operator cabinet
Pendular working system
