3-axis CNC milling machine FOX M
universalbridgerotating table

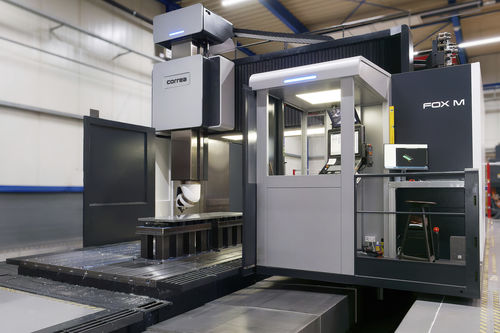

3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 2
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 3
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 4
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 5
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 6
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 7
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 8
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 9
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 10
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 11
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 12
3-axis CNC milling machine - FOX M - NICOLAS CORREA - universal / bridge / rotating table - image - 13
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
bridge, rotating table
Spindle mount
ISO 50, HSK-100
Number of tool stations
60 tools, 40 tools, 30 tools, 12 tools, 120 tools, 8 tools
Applications
for aeronautics
Other characteristics
high-performance, precision
X travel

Min.: 5,000 mm
(196.85 in)

Max.: 14,000 mm
(551.18 in)

Y travel

Min.: 2,500 mm
(98.43 in)

Max.: 5,000 mm
(196.85 in)

Z travel

1,000 mm, 1,500 mm, 1,750 mm
(39.37 in, 59.06 in, 68.9 in)

Rotational speed

6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)

Power

37 kW, 42 kW, 52 kW
(50.31 hp, 57.1 hp, 70.7 hp)

Work feed X-axis

25 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Table load capacity

Min.: 10,000 kg
(22,046 lb)

Max.: 15,000 kg
(33,069 lb)

Description

The FOX-M represents a new and innovative concept of bridge-type machine which combines traditional roughing capacity with the speed and precision of high performance machining. It includes a unique system which controls the temperature generated in the vertical axis of the machine. STANDARD EQUIPMENT Portable handwheel Air-conditioned electrical cabinet Linear guides in the X, Y axes Friction guide at Z axis Lamp in the working area Hydraulic and cooling group Absolute Heidenhain measurement rules in all axes Exterior coolant with adjustable lance nozzles Internal and external air flow Guarding Tele-service VIXION 4.0 OPTIONAL EQUIPMENT Other heads Automatic head-changer Probes of measurement, tools and parts Air/Coolant cleaning gun Self cleaning filter Rotary tables Chip conveyors Perimeter fence Full guarding (Only in some models) Coolant through the spindle Zero-point systems for rapid part change
