- NICOLAS CORREA

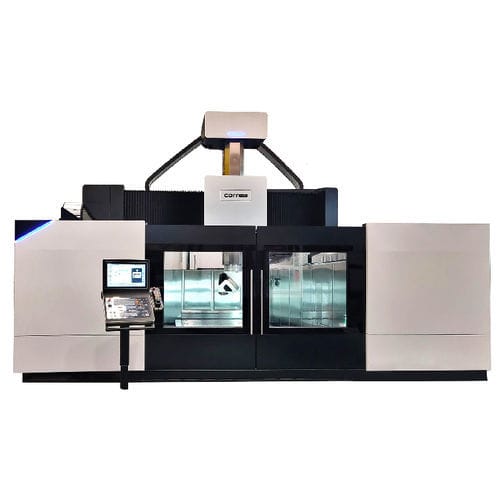

5-axis CNC milling machine XPIDERuniversalwith rotary tablegantry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Structure
- gantry, with rotary table
- Machined material
- for aluminum
- Spindle mount
- ISO 50, HSK-63
- Number of tool stations
- 60 tools, 40 tools, 30 tools, 12 tools, 120 tools, 8 tools
- Applications
- for the mold industry, for the automobile industry, for the aeronautical industry
- Other characteristics
- high-speed, precision
- X travel
3,500 mm
(137.8 in)- Y travel
2,000 mm, 3,000 mm
(78.74 in, 118.11 in)- Z travel
Max.: 1,500 mm
(59.06 in)Min.: 1,000 mm
(39.37 in)- Rotational speed
6,000 rpm, 12,000 rpm, 24,000 rpm
(37,699 rad.min-1, 75,398 rad.min-1, 150,796 rad.min-1)- Power
30 kW, 35 kW, 60 kW
(40.79 hp, 47.59 hp, 81.58 hp)- Work feed X-axis
45 m/min, 60 m/min
- Work feed Y-axis
45 m/min, 60 m/min
- Work feed Z-axis
45 m/min
Description
The XPIDER represents a concept of high-speed “top gantry” machine which incorporates unique structural elements and functions. Temperature stability and high speed combined in this new generation milling machine.
STANDARD EQUIPMENT
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y and Z axes
Lamp in the working area
Hydraulic and cooling group
Linear scales in all axes
External Coolant with adjustable nozzles
Internal and external air flow
Guarding
Tele-service
VIXION 4.0
OPTIONAL EQUIPMENT
Other heads
Automatic head-changer
Tool and parts measurement probes
Air/Coolant cleaning gun
Self-cleaning filter
Chip conveyors
Different guarding according to user’s needs (only in some models)
Coolant through spindle 17, 36, 70 bar
Zero Point Clamping System integrated in the machin
