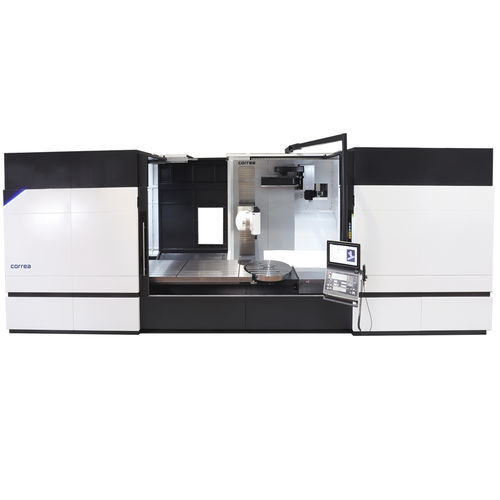

3-axis CNC milling machine NORMA PITuniversal
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- X travel
2,000 mm, 2,500 mm, 3,500 mm, 4,500 mm
(78.74 in, 98.43 in, 137.8 in, 177.17 in)- Y travel
1,250 mm, 1,500 mm
(49.21 in, 59.06 in)- Z travel
1,500 mm, 2,000 mm
(59.06 in, 78.74 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
Max.: 33 kW
(44.87 hp)Min.: 24 kW
(32.63 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
4,500 kg, 6,500 kg, 8,500 kg, 10,500 kg
(9,921 lb, 14,330 lb, 18,739 lb, 23,149 lb)- Weight
17,800 kg, 19,000 kg, 21,200 kg, 24,000 kg
(39,242.28 lb, 41,887.83 lb, 46,738 lb, 52,910.94 lb)
Description
Surface - mm - 2.150 x 1.000/1.250 - 2.650 x 1.000/1.250 - 3.650 x 1.000/1.250 - 4.650 x 1.000/1.250
Diameter - Ø mm - 1,000/1,250 - 1,000/1,250 - 1,000/1,250 - 1,000/1,250
Turning table speed - rpm - 250
SPINDLE SPECIFICATIONS
Maximum torque - Nm - 840 - 990
STANDARD EQUIPMENT
Numerical control Heidenhain or Siemens
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y and Z axes
Lamp in the working area
Gearbox
Hydraulic group
Linear scales in all axes
External Coolant with adjustable nozzles in the head
Perimeter fence
Direct Tele-service
VIXION 4.0
