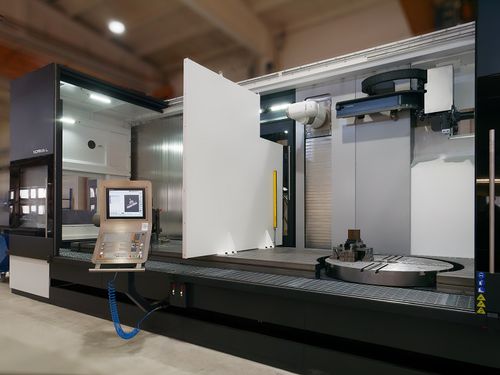

3-axis CNC milling machine NORMA L PITuniversaltraveling-columnHSK-T100
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- traveling-column
- Spindle mount
- HSK-T100
- X travel
4,500 mm, 6,000 mm, 8,000 mm
(177.17 in, 236.22 in, 314.96 in)- Y travel
1,250 mm, 1,500 mm
(49.21 in, 59.06 in)- Z travel
1,500 mm, 2,000 mm
(59.06 in, 78.74 in)- Rotational speed
3,000 rpm, 6,000 rpm
(18,850 rad.min-1, 37,699 rad.min-1)- Power
24 kW, 33 kW
(32.63 hp, 44.87 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
3,000 kg, 6,000 kg
(6,614 lb, 13,228 lb)
Description
Surface - mm - 4.800 x 1.000/1.250 - 6.300 x 1.000/1.250 - 8.300 x 1.000/1.250
TURNING TABLE
Surface - Ø mm - 1,000 / 1,250 - 1,000 / 1,250 - 1,000 / 1,250
Speed - rpm - 250
SPINDLE SPECIFICATIONS
Maximum torque - Nm - 840 / 990
