4-axis CNC milling machine FOX W
universalbridgewith rotary table

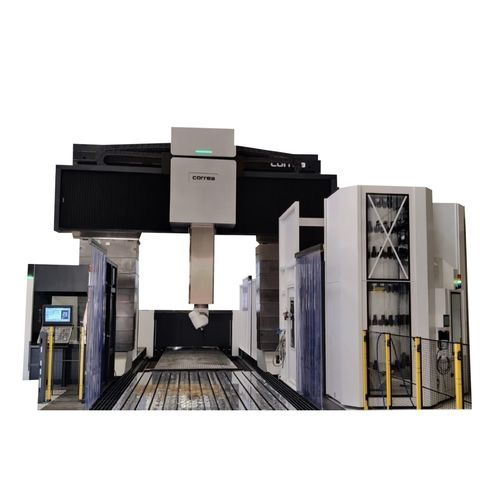

4-axis CNC milling machine - FOX W - NICOLAS CORREA - universal / bridge / with rotary table
4-axis CNC milling machine - FOX W - NICOLAS CORREA - universal / bridge / with rotary table
Add to favorites
Compare this product


Characteristics

Number of axes
4-axis
Spindle orientation
universal
Structure
bridge, with rotary table
Spindle mount
ISO 50, HSK-100
Number of tool stations
40 tools, 30 tools, 12 tools, 120 tools, 8 tools
Applications
for the automobile industry
Other characteristics
high-performance, precision
X travel

Min.: 3,000 mm
(118.11 in)

Max.: 8,000 mm
(314.96 in)

Y travel

3,000 mm, 3,750 mm, 4,250 mm, 5,000 mm
(118.11 in, 147.64 in, 167.32 in, 196.85 in)

Z travel

1,500 mm, 1,750 mm
(59.06 in, 68.9 in)

Rotational speed

6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)

Power

37 kW, 42 kW, 52 kW
(50.31 hp, 57.1 hp, 70.7 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Table load capacity

Min.: 15,000 kg
(33,069 lb)

Max.: 25,000 kg
(55,116 lb)

Description

The FOX W represents a new and innovative concept of bridge-type machine which combines traditional roughing capacity with the speed and precision of high performance machining. It includes a unique system which controls the temperature generated in the vertical axis of the machine. STANDARD EQUIPMENT Portable handwheel Air-conditioned electrical cabinet Linear guides in the X, Y axes Friction guide at Z axis Lamp in the working area Hydraulic and cooling group Linear scales in all axes Exterior coolant with adjustable lance nozzles Internal and external air flow Guarding Tele-service VIXION 4.0 OPTIONAL EQUIPMENT Other heads Automatic head-changer Probes of measurement, tools and parts Air/Coolant cleaning gun Self cleaning filter Chip conveyors Full guarding (Only in some models) Coolant through the spindle Zero-point systems for rapid part change Integrated turning plate Automatic pallet changer
