3-axis CNC milling machine XPERTA
universalfixed-bedwith rotary table

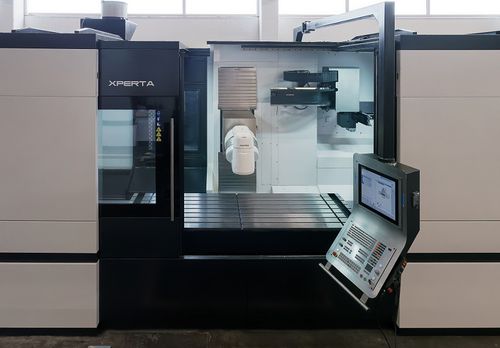

3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 2
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 3
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 4
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 5
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 6
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 7
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 8
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 9
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 10
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 11
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 12
3-axis CNC milling machine - XPERTA - NICOLAS CORREA - universal / fixed-bed / with rotary table - image - 13
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
fixed-bed, with rotary table
Spindle mount
ISO 50
Number of tool stations
60 tools, 40 tools, 30 tools, 8 tools
Other characteristics
high-precision, wet, with automatic tool changer
X travel

2,000 mm, 2,500 mm, 3,500 mm, 4,500 mm
(78.74 in, 98.43 in, 137.8 in, 177.17 in)

Y travel

1,000 mm
(39.37 in)

Z travel

1,000 mm
(39.37 in)

Rotational speed

4,000 rpm, 6,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1)

Power

24 kW
(32.63 hp)

Work feed X-axis

25 m/min

Work feed Y-axis

25 m/min

Work feed Z-axis

25 m/min

Table load capacity

4,500 kg, 6,500 kg, 8,500 kg, 10,500 kg
(9,921 lb, 14,330 lb, 18,739 lb, 23,149 lb)

Weight

15,200 kg, 16,400 kg, 18,600 kg, 22,000 kg
(33,510.26 lb, 36,155.81 lb, 41,005.98 lb, 48,501.7 lb)

Description

The XPERTA represents a new concept of bed type, lateral ram machine. Very sturdy thanks to structural elements with large sections together with an L-shaped ram guide system. A high precision thanks to the mechanical ram droop correction system. A flexible machine suitable for machining and finishing operations. Eco Design High Feed Rates High Geometrical Precision L Guide-way System Configuration Mechanical Compensation System Oversized Structural Elements Machine Dynamic Adjustment STANDARD EQUIPMENT Automatic Universal Head Numerical control Heidenhain Portable handwheel Air-conditioned Electrical cabinet Linear guides in the X, Y and Z axes Lamp in the working area Hydraulic group Linear scales in all axes External Coolant with adjustable nozzles in the head Perimeter fence Direct Tele-service VIXION 4.0 OPTIONAL EQUIPMENT Other heads Probes of measurement tools and parts Air or oil cleaning gun with motor pump Centrifugal filter in cutting fluid tank Chip conveyors Integral guarding Basic guarding Coolant through spindle to high and medium pressure
