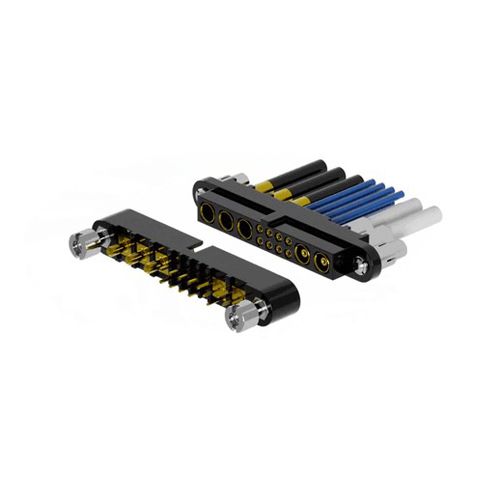

Micro connector CMM seriesdataelectrical power supplyRF
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply, RF
- Format
- coaxial, board-to-board, board-to-wire, PCB, wire-to-wire
- Shape
- rectangular
- Electrical characteristics
- power, high-power, high-frequency, low-frequency
- Product applications
- for medical devices, electronic equipment
- Domain
- medical, power distribution, for electronics, for airborne applications
- Other characteristics
- modular, micro, double-row, three-row
- Primary current
Min.: 0 A
Max.: 30 A
- Voltage
Min.: 0 V
Max.: 800 V
- Pitch
2 mm
(0.079 in)- Operating temperature
Min.: -60 °C
(-76 °F)Max.: 260 °C
(500 °F)
Description
CMM connectors are designed to meet or exceed electrical & mechanical performances of MIL-DTL-55302F and BS-9525-F0033 standards. This modular connector allows more than 20 million arrangements.
Main features:
- Extreme modularity (Signal, power and coaxial contacts, from 1 to 3 rows, up to 120 pins)
- 2mm pitch
- Board-to-board, board-to-wire, wire-to-wire configurations
- Space-saving up to 60%, weight saving up to 50% compared to other existing rectangular micro-connectors with the same functionalities
- Robustness with PPS material: no humidity absorption, oxygen-free, radiation resistance and solvent resistance
- Temperature cycling between -60°C and + 260°C
Highly resistant to vibrations and shocks
- Various and numerous fixing hardware
- No MOQ
- Online services iOS/Android for designers (automatic part numbering system, automatic 2D and 3D drawings)
