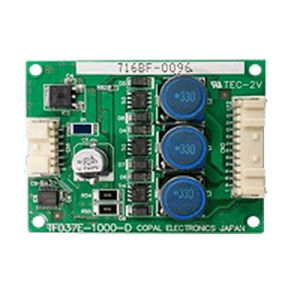

Motor driver TF037-1001-D

1.Scope This specification is for the driver kit[TF037-1001-D] dedicated to the Micro Blower [TF037 series], a product of NIDEC COPAL ELECTRONICS CORP.(hereinafter referred to as "NCEL"). Contents of the kit are Driver board and Harness (2 types). 2.Specification (Notel) Environmental conditions : 23±5‘C, normal humidity, atmospheric pressure range 90 to 106kPa (unless otherwise specified). (Note2) Measuring conditions : Blower = TF037C-2100-F, measurement equipment = NCEL's standard equipment (Note3) Measuring conditions (unless otherwise specified) : supply voltage = DC24V, pressure = 4.0kPa, airflow = lOOL/min (Note4) It is the specification at the time of shipment and is not applied with the characteristics change by the time-dependent change.
