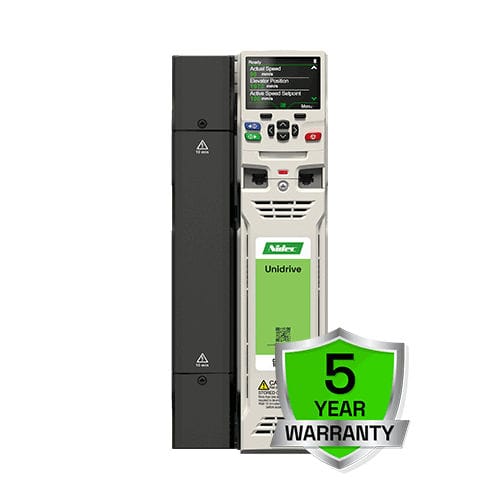

High-frequency AC drive Unidrive HS70
three-phasedigitalwith mounting bracket

high-frequency AC drive
high-frequency AC drive
Add to favorites
Compare this product


Characteristics

Type
three-phase, digital
Mounting
vertical, with mounting bracket
Applications
for induction motors, for permanent magnet motors, for servo motors
Protection class
IP54, IP66
Other characteristics
open-loop, Ethernet, variable-frequency, with integrated PLC, high-frequency, Modbus
Power

Min.: 0.75 kW

Max.: 2,800 kW

Output frequency

1,250 Hz, 3,000 Hz

Description

Control Techniques’ Unidrive HS70 series high-speed variable frequency AC/Servo drives deliver enhanced control of high speed motors. Additionally, machine throughput is maximized through enhanced single axis control and multi-axis network synchronization. Onboard real-time Ethernet (IEEE 1588 V2), onboard Advanced Motion Controller, and high speed I/O for position capture enables machine builders to create more sophisticated and flexible machines. The onboard Ethernet is also compatible with EtherNet/IP, Modbus TCP, and Real-Time Motion over Ethernet (RTMoE) for network flexibility. To meet the needs of any application Unidrive M700 series is available in three variants: Unidrive HS70: Onboard Ethernet and single STO input Unidrive HS71: Onboard RS485 to upgrade from Unidrive SP, single STO input Unidrive HS72: Onboard Ethernet, dual STO inputs Maximize throughput with superior motor control High bandwidth motor control algorithm for open and closed loop induction, synchronous permanent magnet, and servo motors with up to 3,000 Hz current-loop bandwidth and 250 Hz speed loop bandwidth for smooth, efficient motor control Flexible speed and position feedback interface supports a wide range of feedback technologies from robust resolvers to high resolution encoders Optimize system performance with onboard Advanced Motor Controller Unidrive HS70 series incorporates an Advanced Motion Controller capable of controlling 1.5 axes. The motion functions are carried out 'on the drive' so that system performance is maximized ...For more information on this product please see the catalogue below or contact us
