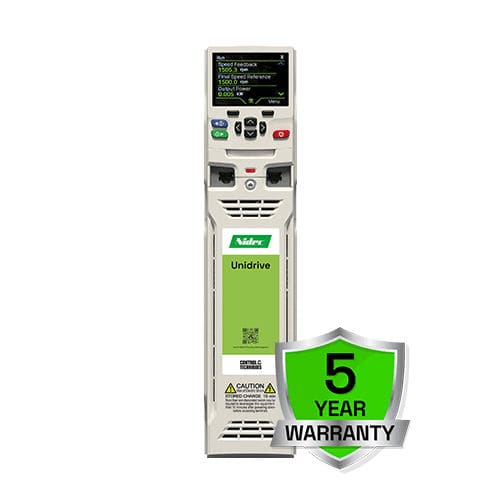

Universal AC drive Control Techniques - Unidrive M700

three-phasedigital displaywith mounting bracket

A key competence of Control Techniques is honing our unique motor control algorithms, taking pride in our craft as any good craftsman would. This ensures that our Unidrive M series drives offer the highest control stability and bandwidth for every industrial motor type. Unidrive M enables maximum machine throughput in every application and with every motor, from standard AC induction motors to dynamic linear motors and from energy saving hybrid permanent-magnet motors to high performance servo motors. To meet the needs of any application Unidrive M700 series is available in three variants: Unidrive M700: Onboard Ethernet and single STO input Unidrive M701: Onboard RS485 to upgrade from Unidrive SP, single STO input Unidrive M702: Onboard Ethernet, dual STO inputs The drive for your industry and application For Torque Control applications Precision torque control with up to 250 μs update rate Sensorless control of induction, permanent-magnet and hybrid PM motors 98% efficient, minimal energy lost during the power conversion process Easy common DC bus configuration, dynamic braking, and regenerative mode Full spectrum of stand-alone, modular and pre-assembled drives up to 2.8MW (4,200 HP) On-board PLC to execute programs for logic and sequencing For Speed Control applications Fully configurable S-ramps High bandwidth speed loop and switching frequencies supported up to 16 kHz Built-in, universal feedback interface supporting everything from resolvers to incremental and absolute encoders This product comes with 5-year warranty as standard
