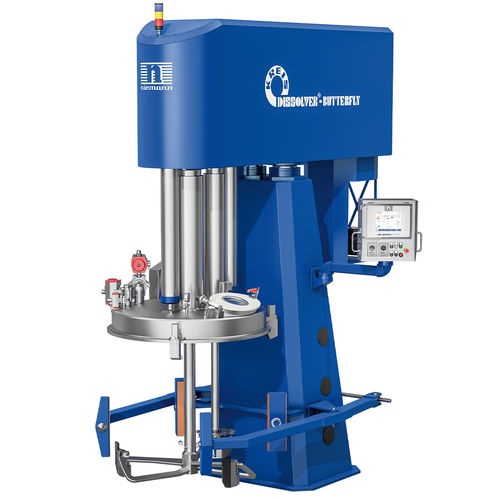

Disperser mixer KDVB seriesdynamicbatchsolid/liquid
Add to favorites
Compare this product
Characteristics
- Technology
- dynamic
- Batch/continuous
- batch
- Product type
- solid/liquid
- Configuration
- vertical
- Other characteristics
- vacuum, disperser, ATEX
- Applications
- adhesive, for high-viscosity materials
- Engine power
Max.: 45 kW
(61.18 hp)Min.: 2.2 kW
(2.99 hp)- Capacity
Max.: 1,500 l
(396.26 gal)Min.: 15 l
(3.96 gal)- Flow
Max.: 1,500 l/min
(396.25808 us gal/min)Min.: 300 l/min
(79.25162 us gal/min)
Description
• Suitable for mixing, dispersing and evacuating of ultra high-viscous and thixotrope products
• Floor installation
• Vacuum execution for all machine sizes
• Use of moveable mixing containers
• Batch sizes of 15 up to maximum 1500 litres
• Drive by modern frequency converter technology
• Height-adjustable stirring / mixing tools
• ATEX according to protecttive system Ex II 2 G c IIB T3 for category 2G (zone 1)
• ATEX according to protective system Ex II 2/- D c IIB T3 for category 2D (zone 21) in the mixing container
• Stainless steel mixing containers
• Double suction disc
• Mixing shaft scraper
• Vacuum design
• Platform balance
• Temperature measurement
• ATEX zone 0
• Recipe controlled semi and fully automatic PC/PLC control (KD-BATCH-CONTROL®)
• NIEMANN premium package
• Wall putty
• Printing inks
• Polyester putty
• Sealants
• Adhesives
• PU casting compound
• Silicone products
• High-viscous systems based on PU / epoxy / polysulfide
