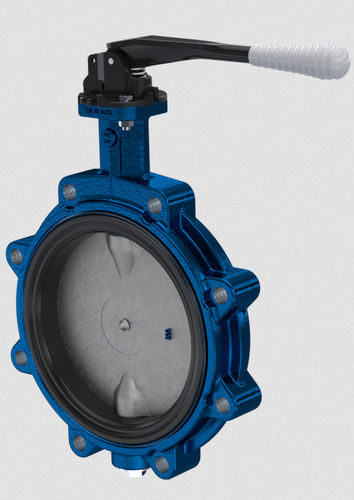

Butterfly valve AK02leverfor waterfor gas
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Media
- for water, for gas
- Body
- lug type, stainless steel, EPDM, iron
- Applications
- industrial, for liquids
- Other characteristics
- DIN
- DN
150 mm
(5.906 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 16 bar
(232.1 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 90 °C
(194 °F)
Description
Butterfly valve DN 150 PN10-PN16 Lug type GGG40 with notch lever with grey sleeve EPDM DVGW drinking water, WRAS, ACS, W270
sleeves: - EPDM DVGW drinking water, WRAS, ACS, W270
body material: - SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: - stainless steel 1.4408
actuation: - notch lever with grey sleeve
approval: - EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
installation position: - any position
product feature: - Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
