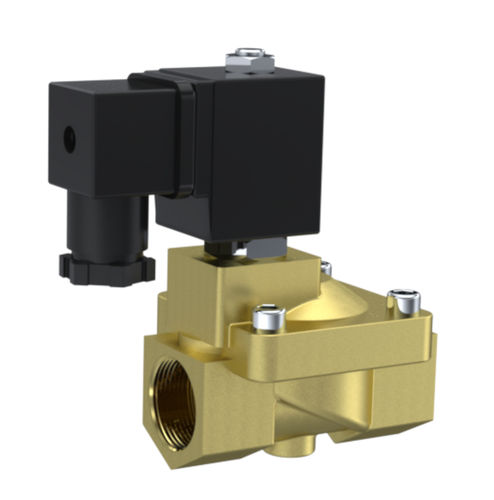

Pilot-operated solenoid valve MV05 2-wayNCfor gas
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for gas
- Body
- female, seat, IP65, brass
- Process connection
- G 1 1/2
- Other characteristics
- plug, membrane, control
- DN
40 mm
(1.575 in)- Voltage
24 V
- Temperature
Max.: 130 °C
(266 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0.5 bar
(7.3 psi)
Description
2/2 Ways Solenoid valve G 1 1/2" Inch DN40 made of brass seal EPDM servo controlled nominal voltage 24V DC pressure 0.5 - 16 bar
flow rate: - 25.8 m³/h
seal: - EPDM
voltage tolerance: - +/- 10% acc. VDE 0580
power consumption: - 13 Watt
duty: - 100% ED
plug socket: - IP65 with plug socket mounted
installation position: - any position, solenoid preferably standing
