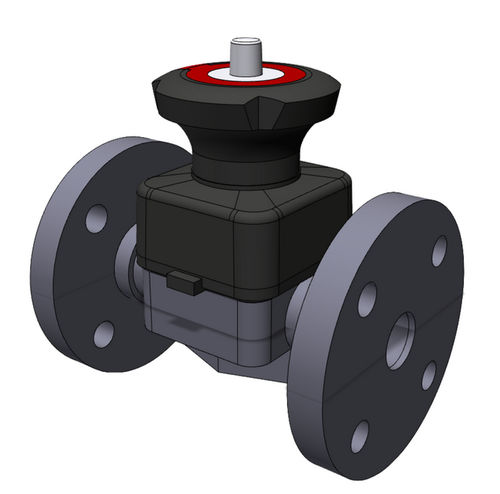

Diaphragm valve MB01with handwheelfor controlfor gas
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Function
- for control
- Media
- for gas
- Body
- flange, EPDM, PVC-U, PP
- Applications
- for liquids
- DN
15 mm
(0.591 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Flow rate
7 m³/h
(247.2 ft³/h)
Description
diaphragm valve PVC-U DN15 flange EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs-value: 6,72 m3/h suitable for liquid and gaseous media
product feature: - precise control of the media. Adjusted and locked in over 300 positions
product feature 2: - a lock can be installed to protect the plant against unwanted interference
