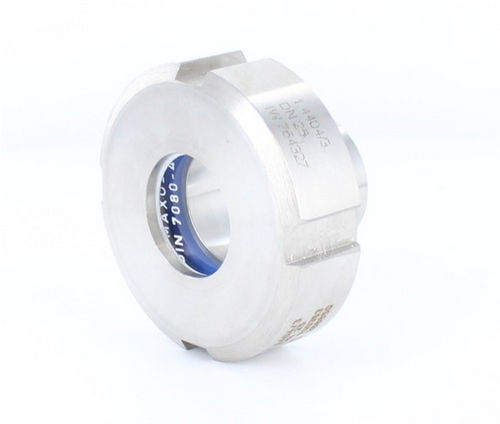

Vessel sight glass GS04hosestainless steelborosilicate glass
Add to favorites
Compare this product
Characteristics
- Specifications
- for vessels, hose, stainless steel, borosilicate glass, threaded
- DN
80 mm
(3.1 in)- Operating temperature
Max.: 110 °C
(230 °F)Min.: 0 °C
(32 °F)- Operating pressure
Max.: 6 bar
(87 psi)Min.: 0 bar
(0 psi)
Description
Screwed Sight glass fitting DN80 - 3" Inch aus stainless steel 1.4404 to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 6,0 bar
design: - for screwing
glass: - borosilicate glass
requirements: - acc. similar DIN 11851
installation position: - any position
product feature: - Hose thread connection RD 110 x 1/4"
