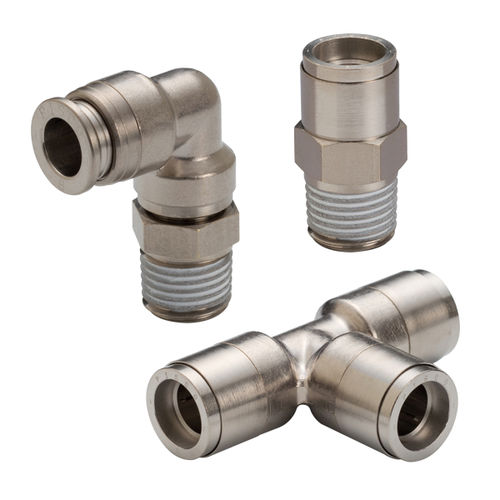

Brass fitting K serieshydraulicpneumaticpush-in
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, pneumatic
- Attachment
- push-in
- Configuration
- T, elbow, Y
- Material
- brass
- Gender
- male
- Other characteristics
- bulkhead, for mold cooling
- Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Operating pressure
Min.: -0.1 MPa
Max.: 1 MPa
Description
Not only the body but also the release ring is made of brass, so that these models feature excellent flame/spatter resistance and heat resistance.
Release ring cover is equipped.
As the models with the cover prevents malfunction of release ring due to spatter, it is best suitable for spatter generating atmosphere.
No cover type is also standardized for a variety of applications.
No cover type is recommended for the applications which does not require spatter resistance (such as piping for mold cooling).
It is compatible with special specifications.
Seal material can be changed to FKM from standard HNBR.
For price options, please contact our distributor near your office.
