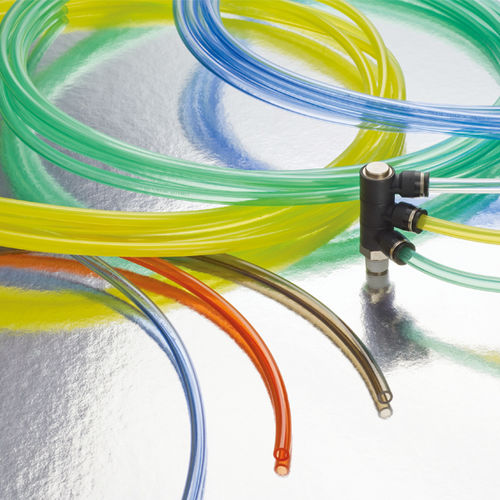

Polyurethane tube UC seriesfor airfor watersmall bend radius
Add to favorites
Compare this product
Characteristics
- Use
- for water, for air
- Material
- polyurethane
- Other characteristics
- flexible, multi-color, extruded, small bend radius
- Inner diameter
2.5 mm, 4 mm, 5 mm, 6.5 mm, 8 mm
(0.098 in, 0.157 in, 0.197 in, 0.256 in, 0.315 in)- Outer diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Pressure
Max.: 0.6 MPa
Min.: 0 MPa
- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Delivered length
20 m, 100 m
(65'07" , 328'01" )
Description
Extremely flexible suitable where a small bending radius is needed.
The excellent flexibility enables piping in a narrow space achives a small bend radius.
Can also be used with water.
Extruded from Ether type polyurethane.
The cut marks at 500mm interval are printed on the tube.
They are useful to cut tubing.
The marks are just as a guide and the accuracy is not guaranteed.
For price options, please contact our distributor near your office.
https://www.pisco.co.jp/en/company/network/
