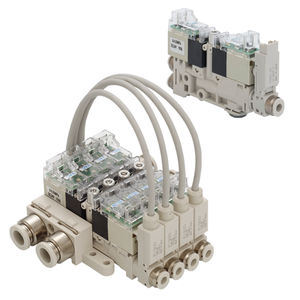

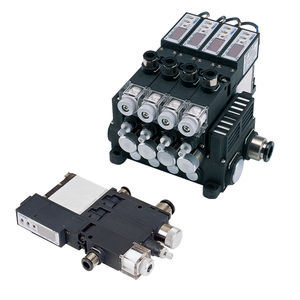

Modular vacuum ejector VX seriessingle-stageindustrialcompact
Add to favorites
Compare this product
Characteristics
- Number of stages
- single-stage
- Applications
- industrial
- Other characteristics
- compact, modular, pneumatic, with push-in fitting
- Ultimate vacuum
-66,500 Pa, 90,400 Pa, 93,100 Pa
(-9.65 psi, 13.11 psi, 13.5 psi)- Flow rate
Max.: 20 l/min
(5.28 us gal/min)Min.: 7 l/min
(1.85 us gal/min)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)
Description
The response characteristics of supply valve is maximized to realize a high-cycle vacuum system.
A light weight and compact vacuum unit meeting market needs
There are 2 types of installation, direct-mounting by screw and DIN-rail mounting
Vacuum switch is available in three types.
Two types come with good visibility LED display, 2 switch-output and analog output+1 switch-output. Analog output type with no LED is also available as a low cost version.
Optional "-S3" specification: for applications where "No copper alloy" and "Ozone resistance (low concentration)" are required.
No copper alloy is used for metal parts and ozone proof (low concentration) rubber is used for sealing rubber parts.
