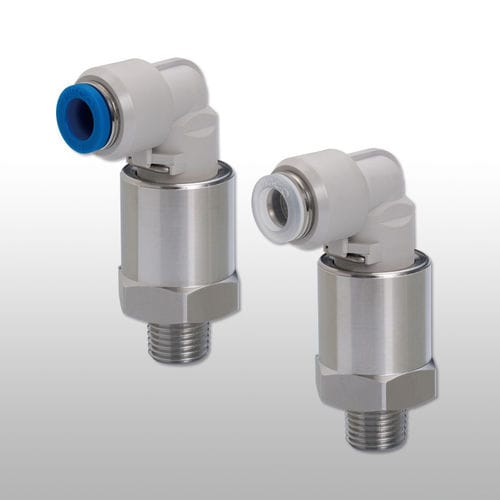

Hydraulic fitting RWL seriespneumaticscrew-inpush-in
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, pneumatic
- Attachment
- screw-in, push-in
- Configuration
- elbow
- Norms
- NPT, UNF, JIS
- Material
- stainless steel
- Gender
- male
- Other characteristics
- chemical-resistant, swivel, compact, corrosion-resistant, miniature, orientable
- Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Operating pressure
Max.: 0.7 MPa
Min.: -0.1 MPa
Description
Push-in fitting for piping of rotating section for corrosion-resistant environment.
SUS304 push-in fittings for oscillating and rotating sections that can be used with water.
*Only water specification type (RWL) can be used with water.
Two types are available according to the fluid used: water specification type (RWL) and air specification type (RAL).
Chemical-resistant and corrosion-resistant PPS, SUS304, etc. are used for the fluid contacting parts.
No copper-based materials are used.
Oil-free fluid contacting parts.
*Non-fluid contacting parts are not oil-free.
EPDM is used as seal packing material.
Seal packing material: FKM is available as an option.
Seal taped threads are available as an option.
