Rubber vacuum suction cup VMG series

for the food industryfor cardboard boxeslifting

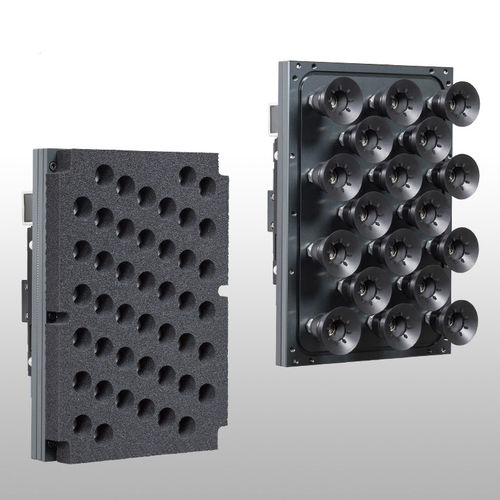

Vacuum Gripper suitable for conveyance of large work-piece. 2 types of grippers are available: whole surface sponge type and arranged Vacuum Pads type. Suitable for a wide range of workpieces. Can be directly connected to EOAT of P.C.D. 31.5, 40, 56, 80, and 100. Vacuum generator built-in type and vacuum pump compatible type are available. Vacuum generator built-in type secures max. suction flow rate: 760L/min (*1). Even permeable workpieces (*2) can be adsorbed. *1. Value for 3 built-in ejectors specification. *2. Workpieces with frequent air leakage such as corrugated cardboard. Can be easily installed by sliding it in to the flange mounting plate that is fixed to the robot. Improved operability and safety.
