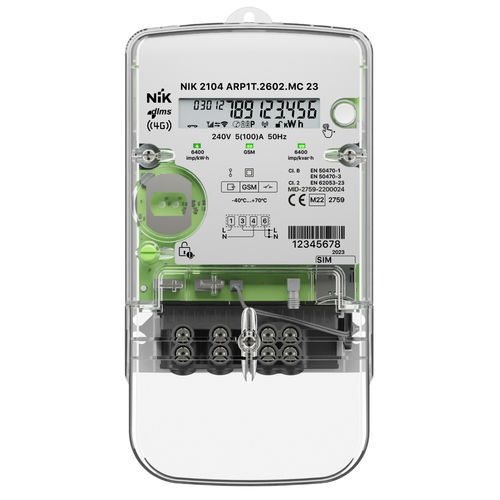

Single-phase electric energy meter 2104

DIN railprepaid

Our single-phase meter NIK 2104 boasts advanced features, including DLMS communication, modern communication interfaces, and measurement capabilities for both active and reactive energy. It provides instantaneous readings for power, voltage, and amperage, along with support for 4 tariffs and 12 zones. With two measuring elements, it offers prepaid functions (optional, in conjunction with the NOVASYS software package) and ensures voltage quality control. The meter features an optical port, a disconnector, and sensors to monitor magnetic and electromagnetic fields. It includes tamper sensors for the case and terminal cover and is housed in a transparent case. Additional functionalities encompass battery mode, a ‘RESET’ button with customizable actions, and two batteries for reliable operation. The meter features an LCD display with vector diagrams and OBIS codes. Data security is ensured through encryption, and remote firmware updates are supported. It features a standard terminal block, DIN 43857, and complies with BS7856 standards.
