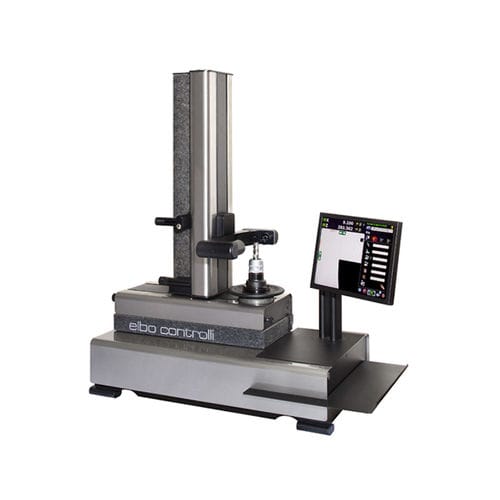

Bench-top tool presetter E460N

The increased cross section and size of the column gives added stability up to 600mm and this theme is continued with revised axis carriages that also deliver increased reliability. The mechanical axis brake and control system have been completely updated from the previous model and finally, and most noticeably, the original pendant & operator panel are now combined in to one single touch screen system that is located away from the camera and column. The latest E460N Tool Presetting machine has been developed as the second level option for our new generation of advanced tool presetting machines. Designed to be bench mounted the E460N features a ground granite base and column, stainless steel construction and ergonomic design combined with a TFT 15” colour touch screen. The Touch Screen provides full operator control and selection of options and functions via an intuitive menu system - these new electronics provide operational and functional simplicity that is second to none. One major new feature of the E460N is the ability to rotate the spindle/tool through 360 degrees and the presetter automatically saves and displays the maximum radius/diameter and length for the tool. The precision Spindle System is fully interchangeable and utilises a one piece cartridge eliminating the need for adaptors and the errors associated with their use. Working via your DNC system, TdSIX converts measured tool data into CNC code for direct loading into the machine controller and associated tool offset pages. The system also includes a Post Processor utility which enables tool offsets to be instantly converted into the correct code to suit numerous CNC machine tool controllers.
