Coordinate measurement system MV series

laserroboticfor large parts

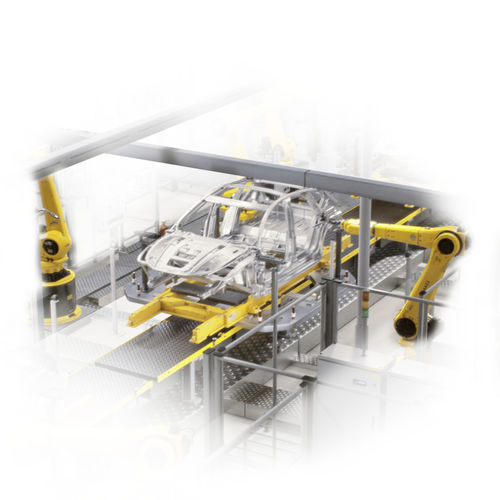

The APDIS MV430E provides the fastest feature measurement of any Laser Radar to date, allowing inspection of critical features in the takt time of the line, or a sampling strategy to cover more features over a set of car bodies for true process control. Direct comparison to CAD Using the APDIS system within a fully automated robotic measurement solution introduces an innovative approach to body-in-white (BIW) inspection. Robot independent accuracy The robot positions the Laser Radar to provide line of sight to the required features. The Laser Radar then automatically realigns to the part by measuring tooling balls on the fixture. Boost inspection productivity With the ability to measure over 6 times as fast as a traditional CMM, an APDIS Laser Radar solution can greatly increase measurement throughput. As body-in-white inspection moves in the direction of Quality 4.0, it will become a fully automated, non-contact, absolute measurement process integrated into the production line. Traditional inspection approaches, such as horizontal arm CMMs, are being replaced by newer, automated approaches like Laser Radar systems.
