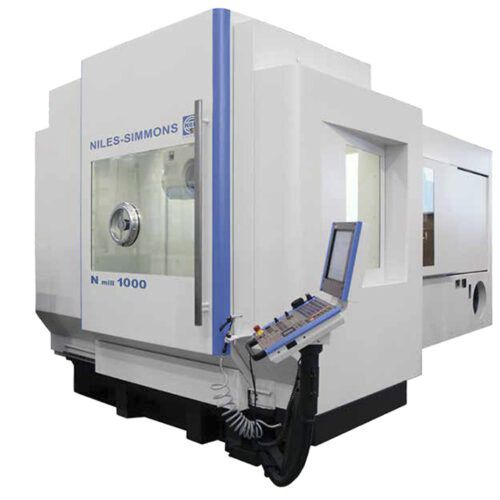

5-axis CNC machining center NMILL 1000

verticalHSK-63HSK-100

Added value: Large working space with excellent ergonomics and low space requirement Heavy cast-iron base and supports with a high-precision guidance system and thermostable structure NC rotary table with dynamic direct drive with hydraulic clamping at desired angle, rotary transmission for additional functions, optional speed range up to 500 rpm with automatic alignment function Reliable high-precision spindles with oilair lubricant with HSK63/HSK100 interface, swivelling A‑Axis can be hydraulically clamped at desired angle The Nmill design has been proven 100 times Model for turning that has an optional hydraulic clamping function for the spindle Uses the latest generation of control technology from HEIDENHAIN and SIEMENS New comfortable operating design with 19″ TFT monitors with NILES-HMI Optional packages: Triple pallet changer Internal coolant supply, unregulated 40 bars of pressure | flow rate 25 l/min Internal coolant supply, regulated 80 bars of pressure | flow rate 18 l/min Rotoclear on front/side Minimum lubrication Coolant Mist extraction Tool probing by using lasers Table top load cell Sensor for measuring workpiece Higher precision Thermal and vibration sensors Remote diagnosis Tailored solutions
