CNC lathe N30
horizontal2-axis12 tools

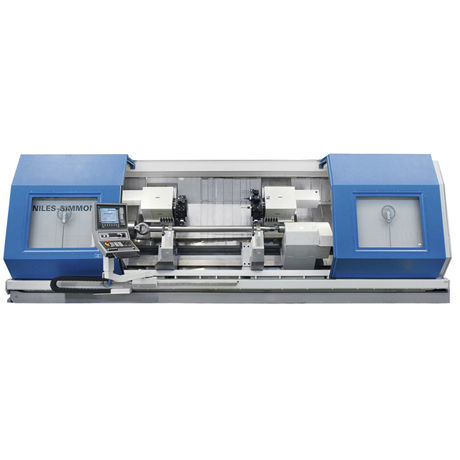

CNC lathe - N30 - Niles-Simmons Industrieanlagen - horizontal / 2-axis / 12 tools
CNC lathe - N30 - Niles-Simmons Industrieanlagen - horizontal / 2-axis / 12 tools
CNC lathe - N30 - Niles-Simmons Industrieanlagen - horizontal / 2-axis / 12 tools - image - 2
CNC lathe - N30 - Niles-Simmons Industrieanlagen - horizontal / 2-axis / 12 tools - image - 3
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Number of tool stations
12 tools
Performance
powerful
Associated function
milling, milling machine, drilling
Diameter

780 mm, 880 mm
(30.71 in, 34.65 in)

Spindle speed

Max.: 3,000 rpm
(18,849.556 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Rapids on X

18,000 mm/min
(12 in/s)

Rapids on Z

30,000 mm/min
(20 in/s)

Description

Added value: Incremental turning lengths up to 4500 mm for flexible shaft machining with one or two tool turrets Left and right turning spindle (optional) as powerful motor- driven spindle or gear spindle with high torque and backlash-free rotary axis Two independent NC-steady rests Machine can be equipped with lower tool slide Process combinations: Turning / Cam profiling Turning / Keyway machining Turning / Drilling / Milling with driven tool spindles
