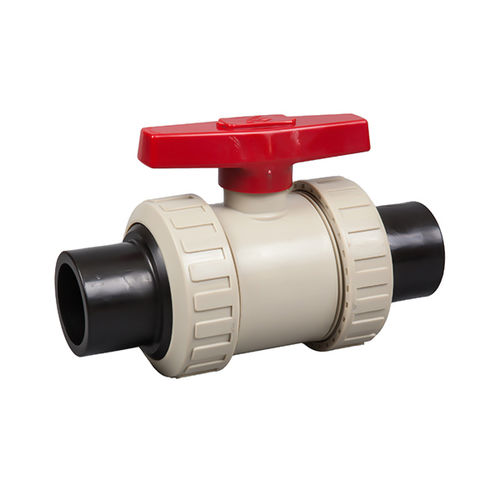

Ball valve Q61F-6S

manualfor acidsthreaded

Full-flow design, thicker wall thickness, The minimum wall thickness of the valve body is more than 3 times that of the same specification pvc pipe(2 times for pp), outstanding pressure resistance. The length of the valve exceeds the design requirements of HG-xx. A bigger spool allows a thicker bal, thicker PTFE seal, stronger inner plug, and thread can easily be converted from manual to automatic without replacing the body A new bottom stand with an insert hole allows the valve to be secured on a bench or panel only by inserting a metallic insert. Removing the handle and placing the raised lugs into the carrier allows for easy disassembly of the valve. Existing cases show that due to factors such as installation errors in factory pipelines. it is easy to cause the union nut to be overstressed and leak or even be damaged. Therefore. it is not recommended to use a valve with a union connection structure above DN50.
