DC motor brushed240 Vfor winding operations
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 240 V
- Applications
- for winding operations
- Other characteristics
- custom
- Power
500 W
(0.68 hp)- Torque
0.261 Nm
(0.1925 ft.lb)- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Diameter
101 mm
(3.98 in)
Description

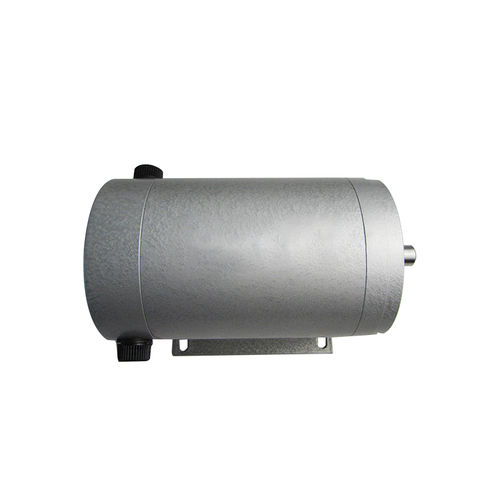

240V 500W DC Brush Motor
Category: Custom DC Brush Motor
Voltage: 24-240 V DC
Power: 500W
Dimension: Φ101×203mm
Noise: ≤65db
Product Description
Products name 240V 500W DC Brush Motor
Dimension Φ101×203mm
Noise ≤65db
Iput voltage 24-240 V DC
Maximum output power 500W
Maximum efficiency 70%
Speed at maximum efficiency 5000r/min
Torque at maximum efficiency 261.5 mN.m
Electrical connection S1
Operation temperature B
Protection grade IPOO
Use Winding machine
