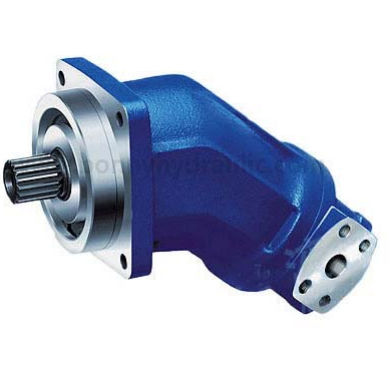

Piston hydraulic motor A2FM Series
industrial

Add to favorites

Compare this product

Characteristics

Technology

piston

Other characteristics

industrial

Pressure

350 bar, 400 bar
(5,076 psi, 5,802 psi)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Torque

Min.: 24.7 Nm
(18.22 ft.lb)

Max.: 5,570 Nm
(4,108.22 ft.lb)

Displacement

Min.: 5 cm³
(0.17 US fl oz)

Max.: 1,000 cm³
(33.81 US fl oz)

Description

Model A2FM Series Replace for Rexroth A2FM Series hydraulic motor Displacement 5cc - 1000cc/rev Speed 0 - 10000rpm This fixed axial displacement piston motor A2FM, bent axis design, suitable for hydrostatic drives in open and closed circuits. It is widely applied in mobile and industrial applications .Output speed depends on the flow capacity of the pump and the displacement of the motor. The torque increase with the pressure differential between the high and low pressure side and with increasing displacement. And it can be completely interchanged with Rexroth A2FM series hydraulic motor. Features: 1. Counterbalance valve can be fitted 2. Option: Integrated pressure relief valve 3. Option: Integrated or built - on flushing and boost pressure valves 4. Suitable for use as pump in closed circuits 5. Long - life bearings available (sizes 250 - 1000) 6. Totally interchangeable with original Rexroth A2FM series Hydraulic Motor
