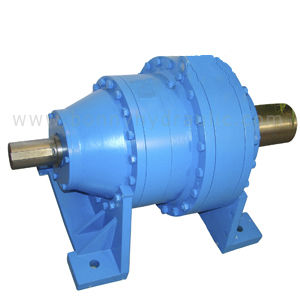

Planetary gearbox Foot Mounted Series

right angle> 10 kNm1 - 2 kNm

reduction gearbox ,Foot Mounted Planetary Reducer Model Foot Mounted Series Replace for Brevini ED, ET, EQ, EM, EC and EL series Bonfiglioli 300 series Dinamicoil RE, RA series Reggiane Riduttori RR series Ratio 3.4-5000 Output Torque 1000-450000N.m Overview The installation and overall dimension of planetary gearboxes are strictly designed in accordance with Italy and American manufacturers, so they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamicoil RE, RA series on performance and connection dimensions. They are the ideal product to replace those Italian products. Configuration Mounting solution: flange mounted, foot mounted, shaft mounted Features: Torque Range: 1000 ... 1.100.000 Nm Transmissible Mechanical Power: up to 450 kW Gear Ratios: i=3,4 ... 5.000 Gear Unit Versions Right angle (with a spiral bevel gear set) Output Configuration Foot and flange mounted Output shaft: solid with key, splined, splined hollow, hollow with shrink disc Input Configurations Flanged axial piston hydraulic motors Hydraulic orbit motors IEC and Nema motor adaptors Solid input shaft Hydraulic Brake Hydraulically released parking brake on request Electric Brake: DC and AC type
