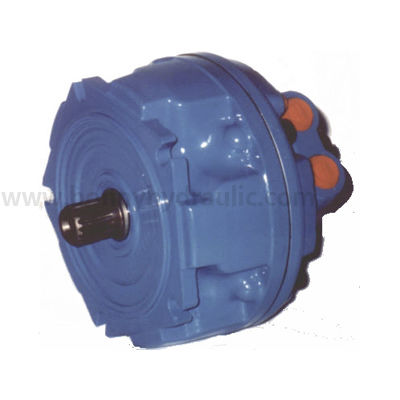

Piston hydraulic motor GM 05 Series
industrial

Add to favorites

Compare this product

Characteristics

Technology

piston

Other characteristics

industrial

Pressure

Max.: 450 bar
(6,527 psi)

250 bar
(3,626 psi)

Min.: 0 bar
(0 psi)

Rotational speed

Max.: 1,000 rpm
(6,283.19 rad.min-1)

600 rpm, 650 rpm, 700 rpm
(3,769.91 rad.min-1, 4,084.07 rad.min-1, 4,398.23 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Torque

Max.: 48,000 Nm
(35,402.98 ft.lb)

Min.: 200 Nm
(147.51 ft.lb)

Displacement

Max.: 12,000 ml
(405.77 US fl oz)

Min.: 60 ml
(2.03 US fl oz)

Description

Sai Hydraulic Motors Model GM Series Replace for SAI GM05 Series Displacement 60-12000ml/r Torque 200-48000N.m GM series bent axle radial plunger piston motor such characteristics as: high mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc. Features: High Efficiency, small volume, light weight High starting torque, high specific speed range Motor can be used in the pump working condition and realize freewheel operation condition. Compact structure, reasonable design Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation. The mounting dimension and more than 80% of internal components can be interchanged with SAI Products.
