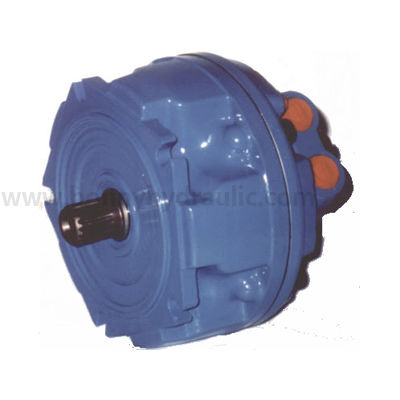

Piston hydraulic motor GM 7 Series
industrial

Piston hydraulic motor - GM 7 Series - Ningbo Bonny Hydraulics Transmission Co., Ltd. - industrial

Add to favorites

Compare this product

Characteristics

Technology

piston

Other characteristics

industrial

Pressure

250 bar
(3,626 psi)

Max.: 425 bar
(6,164 psi)

Min.: 0 bar
(0 psi)

Rotational speed

200 rpm, 265 rpm, 285 rpm
(1,256.64 rad.min-1, 1,665.04 rad.min-1, 1,790.71 rad.min-1)

Max.: 450 rpm
(2,827.43 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Torque

Max.: 48,000 Nm
(35,402.98 ft.lb)

Min.: 200 Nm
(147.51 ft.lb)

Displacement

Max.: 12,000 ml
(405.77 US fl oz)

Min.: 60 ml
(2.03 US fl oz)

Description

Model GM Series Replace for SAI GM7 Series Displacement 60-12000ml/r Torque 200-48000N.m GM series bent axle radial plunger piston motor such characteristics as: high mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc. Features: High Efficiency, small volume, light weight High starting torque, high specific speed range Motor can be used in the pump working condition and realize freewheel operation condition. Compact structure, reasonable design Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation. The mounting dimension and more than 80% of internal components can be interchanged with SAI Products.
