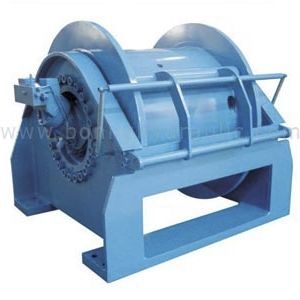

Hydraulic winch AF Series
hoistingcompactplanetary

Hydraulic winch - AF Series - Ningbo Bonny Hydraulics Transmission Co., Ltd. - hoisting / compact / planetary
Hydraulic winch - AF Series - Ningbo Bonny Hydraulics Transmission Co., Ltd. - hoisting / compact / planetary
Hydraulic winch - AF Series - Ningbo Bonny Hydraulics Transmission Co., Ltd. - hoisting / compact / planetary - image - 2
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Application
hoisting
Other characteristics
compact, planetary
Capacity

Max.: 45,000 kg
(99,208 lb)

Min.: 5,700 kg
(12,566.3 lb)

Speed

Max.: 0 m/s
(0 ft/s)

Min.: 0 m/s
(0 ft/s)

Description

Model AF Series Pull Force 5700-45000kgs Rope Speed 0- 83m/min Application ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery Hydraulic Winches AF series high-power hoisting winches are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security. Special Features: Two-or three-stage planetary gearboxes, smooth operation and reasonable structure. Normally closed friction type brake, high braking torque, safe and reliable operating. Small volume, compact structure and high transmission efficiency. Axial fixed or variable hydraulic motor with long life operating. Mounting frame is available on request. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
