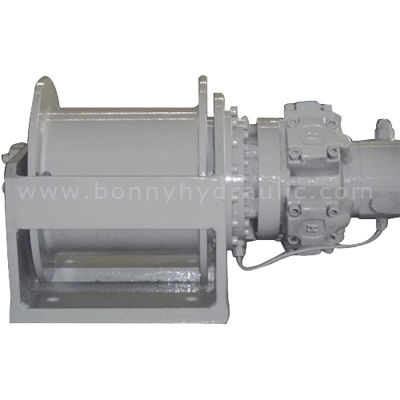

Hydraulic winch GH Series
compactplanetary

Hydraulic winch - GH Series - Ningbo Bonny Hydraulics Transmission Co., Ltd. - compact / planetary

Hydraulic winch - GH Series - Ningbo Bonny Hydraulics Transmission Co., Ltd. - compact / planetary - image - 2

Add to favorites

Compare this product

Characteristics

Operation

hydraulic

Type

wire rope

Other characteristics

compact, planetary

Capacity

Max.: 40,000 kg
(88,184.9 lb)

Min.: 1,000 kg
(2,204.6 lb)

Speed

Max.: 0.7 m/s
(2.3 ft/s)

Min.: 0 m/s
(0 ft/s)

Description

Model GH Series Pull Force 1000 - 40000kgs Rope Speed 0- 40m/min Application marine deck machinery, harbor, petroleum, drill machine, mining, geological exploration and construction machinery GH series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, mining, geological exploration and construction machinery. Special Features One-or two-stage planetary gearboxes, smooth operation and reasonable structure. Normally closed friction type brake, high braking torque, safe and reliable operating. Small volume, compact structure and high transmission efficiency. Radial piston hydraulic motor with long life operating. Mounting frame is available on request. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
