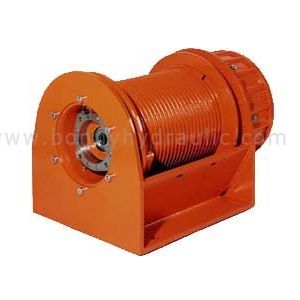

Hydraulic winch ZGW/ZGH Series
hoistingcompactplanetary

hydraulic winch
hydraulic winch
hydraulic winch
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Application
hoisting
Other characteristics
compact, planetary, with brake
Capacity

Max.: 10,000 kg
(22,046.2 lb)

Min.: 5,000 kg
(11,023.1 lb)

Speed

Max.: 0.7 m/s
(2.3 ft/s)

Min.: 0 m/s
(0 ft/s)

Description

Model ZGW/ZGH Series Pull Force 5000 - 10000kgs Rope Speed 0- 40m/min Application pipe layer, crawler crane, motor crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment. With brake in the last stage, the ZGW/ZGH series free fall hydraulic winch can realize the emergency rapid free fall function. Thus it is widely used in pipe layer, crawler crane, moto crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment. Features: One-or two-stage planetary gearboxes, smooth operation and reasonable structure. Normally closed friction type brake, high braking torque, safe and reliable operating. Small volume, compact structure and high transmission efficiency. Radial piston hydraulic motor with long life operating. Mounting frame is available on request. Balance valve, shuttle valve, limit switch and other accessories are also available on request. With brake in the last stage, it can realize the emergency rapid free fall function.
