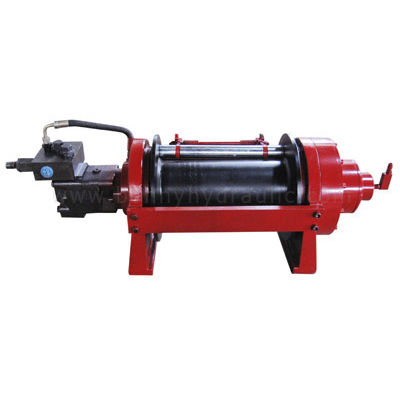

Hydraulic winch HCP Series

haulagepulling

HCP series Self-Recovery Hydraulic Winch Model HCP Series Pulling Hydraulic Winch Pull Force 8000-20000lbs Displacement 65-125 ml/r Application Wreckers, trailers, flat-plate haulage vehicles, engineering machineries, off-road military vehicles and special vehicles. HCP series winches are Bonny totally new products up to the present in the world, each one owns several invention patents of Bonny; this series winch will guide you go to a new winch world and create your four wheels new life, It is your precious and pround, P series winches' salience feature is two speed, besides the speed and the clutch control by one shaft and their gear anto engaged, while you control the clutch or the speed shaft, so it is convenient and reliable. We divide this series winches into two kinds according to the applications. One is specially designed for cross country, this sort of winch equipped a very low oil flow stable working motor, the minimum stable working oil flow only two liters per minute, so it is working perfectly driving by vehicle's existing steering power pump; the winches is with a nameplate of suffix A or U and sometimes with a subjoined number 1,2,3; 1 indicates air clutch, 2 means air and manual mixed clutch; 3means air actions of two speed and clutch. The other one is designed for engineering use. This sort of winch equipped a stronger motor working with a bigger oil flow; the winch is with a nameplate of suffix Y and sometimes with a subjoined number 1, 2 or 3. 1 indicates air clutch, 2 means air and manual mixed clutch, 3 means air actions of two speed and clutch, which showed in the part two: appropriative vehicles engineering applications winches.
