- Double lip seal
- Ningbo Chenming Seals Manufacturing Co., Ltd.

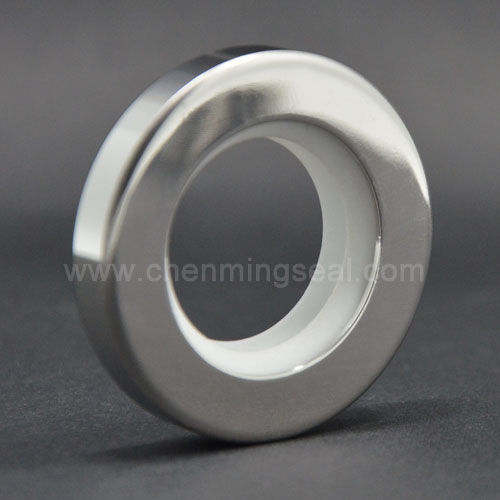

Double lip seal FDA seriescircularstainless steelPTFE
Add to favorites
Compare this product
Characteristics
- Type
- double lip
- Configuration
- circular
- Material
- stainless steel, PTFE
- Application
- for pump, for mixers, for compressors, for the food industry, for actuators, for blowers, for pharmaceutical products, for shaft
- Other characteristics
- hydraulic
- Temperature limit
Max.: 260 °C
(500 °F)Min.: -90 °C
(-130 °F)- Pressure limit
Max.: 3,000,000 Pa
(435.1 psi)Min.: 0 Pa
(0 psi)- Diameter
Max.: 316 mm
(12.441 in)Min.: 16 mm
(0.63 in)
Description
Design Features:•Reinforced double PTFE sealing lip, SUS304/316stainless Steel housing•Resist deformation under more presure•Hydrodynamic return feed spiral groove for higheroperational reliability•Suitable for unhardened sharfts as well•Typical Applications: Compressors, Pumps, MixersActuators, Blowers, Strirring Systems..
Fltting Tips:
• - PTFE shaft seals are press fitted into receiving hole. Recommend the sealing rings be glued into receiving hole. Usd sealing compound(e.g. Loctite 601,641)
• - Use conical fitting tool to protect sealing lip
• - Before fitting process, sealing lip must be inspected for cleanliness/damage
• - The sealing lips must not be deformed
• - Seals may be fitted without lubrication
Storage Instructions:
• - Recommended storage température 10 C to +25 C ; humidity 40% to 70%
• - Do not store in direct sunlight
• - First-in-First-out storage System
• - Protect seals from dirt and deformation
