Double lip seal PDL series
circularstainless steelPTFE

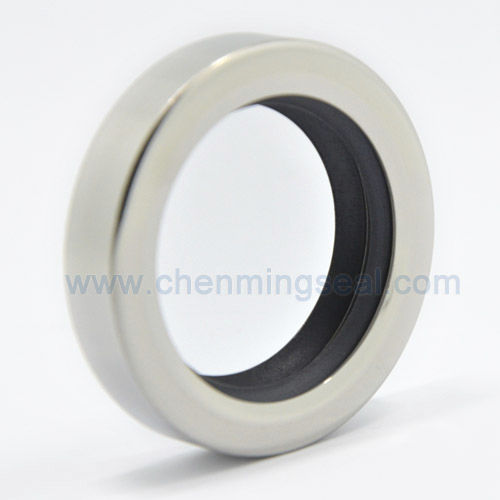

Double lip seal - PDL series - Ningbo Chenming Seals Manufacturing Co., Ltd. - circular / stainless steel / PTFE
Double lip seal - PDL series - Ningbo Chenming Seals Manufacturing Co., Ltd. - circular / stainless steel / PTFE
Double lip seal - PDL series - Ningbo Chenming Seals Manufacturing Co., Ltd. - circular / stainless steel / PTFE - image - 2
Add to favorites
Compare this product


Characteristics

Type
double lip
Configuration
circular
Material
stainless steel, PTFE
Application
for pump, for mixers, for compressors, for actuators, for blowers
Other characteristics
high-pressure
Temperature limit

Max.: 260 °C
(500 °F)

Min.: -90 °C
(-130 °F)

Pressure limit

Max.: 6,000,000 Pa
(870.2 psi)

Min.: 0 Pa
(0 psi)

Diameter

Max.: 316 mm
(12.441 in)

Min.: 16 mm
(0.63 in)

Description

Design Features:•High pressure single PTFE sealing lip. SUS304/316 stainless Steel housing & backup washer•Resist deformation under most presure.•Redundant seal for high pressure aircraftor otherlow leakage systems.•Suitable for unhardened sharfts as well•Typical Applications: Compressors. Pumps. MixersActuators. Blowers, Strirring Systems . Fltting Tips: • - PTFE shaft seals are press fitted into receiving hole. Recommend the sealing rings be glued into receiving hole. Usd sealing compound(e.g. Loctite 601,641) • - Use conical fitting tool to protect sealing lip • - Before fitting process, sealing lip must be inspected for cleanliness/damage • - The sealing lips must not be deformed • - Seals may be fitted without lubrication Storage Instructions: • - Recommended storage température :-10 C to +25 C ; humidity 40% to 70% • - Do not store in direct sunlight • - First-in-First-out storage System • - Protect seals from dirt and deformation
