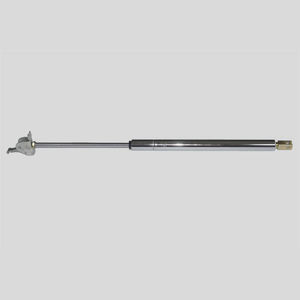

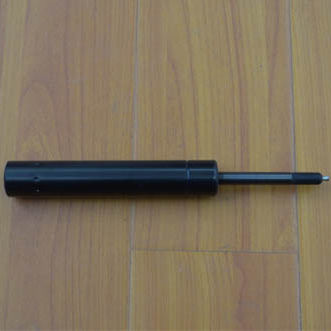

Industrial use gas spring JKQ10-22 series

compact

Elastic Locking Gas Spring The locking function is made possible by a special piston / valve system which creates a leak-proof separation between the two pressure chambers in the gas spring. With the valve open, locking gas spring will provide force assist, ensuring user-friendly motion sequences due to its predefined damping characteristics. When the valve is closed, the gas spring will lock with a slight bounce in the desired position. The standard locking gas spring is filled with gas and should be installed with the piston rod pointing down. Advantages Variable elastic locking and optimized weight compensation during lifting, lowering, opening, and closing Comfortable bouncing and damping of shocks, impacts, or sudden peak loads Flat spring characteristic curve; i.e., low force increase even for high forces or large strokes Compact design for installation in small spaces Easy mounting due to a variety of end fitting option Application Examples Elastic locking in backrest adjustment of swivel chairs or massage chairs Height adjustment of physician’s stools with foot actuation Generally suited for elastic locking of elements where no additional loads need to be held besides the application load
