CNC lathe Q series

horizontalflatbedfor metal

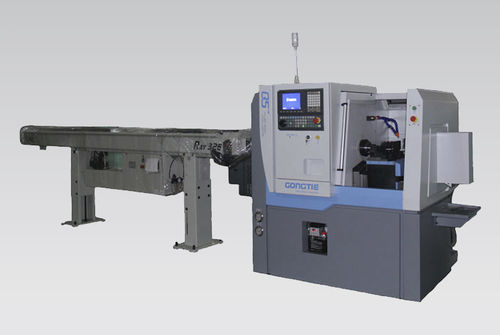

Precision CNC lathe with bar feeder ： High precision CNC lathe with flat bed, the appearance design is fashion, simple and practical, the most wonderful configuration is with a bar feeder, which can automatically feed the bars into the CNC lathe, and it is largely used on the auto parts field. Features : 1.High speed 2.High finish machining technology 3.High efficiency 4.Automatically feeding the bar materials 5.High cost-Competitive, 6.Greatly save labor cost 7.Maintenance-free for 12 months Parameters: 1. 0-5500RPM for spindle, X/Z-axis rapid traverse 20m/min 2. X\Z axis repeating positioning accuracy 0.002 3. Max. turning diameter 240, Max. bar through-hole 25 4. X-axis travel 250, Z-axis travel 200 5. With 4" hydraulic chuck or 25 collet 6. With dovetail row of knives 7.All the main components from international famous brands Application: 1.Turning, drilling, tapping, threading, slotting, milling for metal or plastic parts 2.For automotive parts, valve parts and so on.
