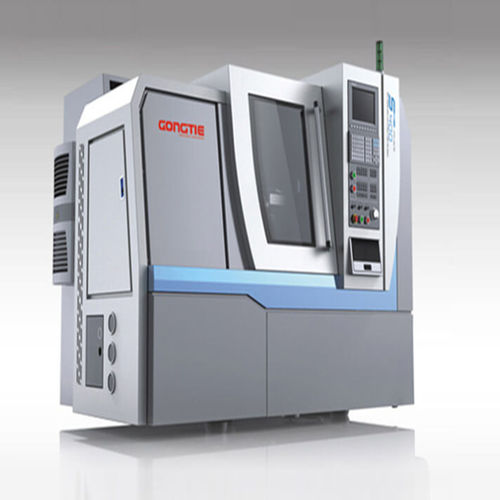

CNC lathe TCK36

horizontal2-axisinclined bed

High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the  precise turning with tolerance of  μ level. High speed: more than 5000RPM for spindle ,rapid traverse 20m/min, to reach the high speed machining.  High efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency. High Stability: high quality requirement  and strict selecting for all the components, to make the machine performance more stable. MAIN PARAMETER max swing diameter over bed Φ 460 max cutting diameter Φ 400 max cutting diameter over tool post Φ 170 max processing length 350 distance between the center tip 370 spindle and chuck spindle type ( chuck optional ) A 2 - 5（6″） recommended spindle power 5.5 - 7.5KW spindle max speed 4000 / 5000 rpm spindle hole diameter Φ56 bar -through hole diameter Φ42
