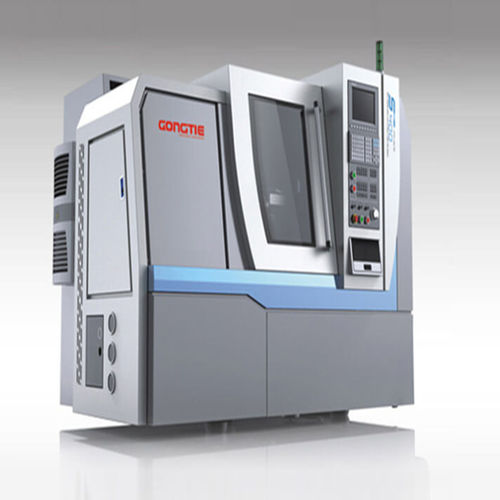

CNC lathe TCK45H

horizontal2-axisinclined bed

High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the  precise turning with tolerance of  μ level. High speed: more than 5000RPM for spindle ,rapid traverse 20m/min, to reach the high speed machining.  High efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency. High Stability: high quality requirement  and strict selecting for all the components, to make the machine performance more stable。 MAIN PARAMETERS max swing diameter over bed Φ600 max cutting diameter Φ450 max swing diameter over tool post Φ210 max processing length 500 SPINDLE & CHUCK spindle nose type ( chuck optional ) A2 - 6（ 8″ ） recommended spindle motor power 11-15 KW max spindle speed 3000 / 4200 rpm spindle hole diameter Φ66 bar-through hole diameter Φ52
